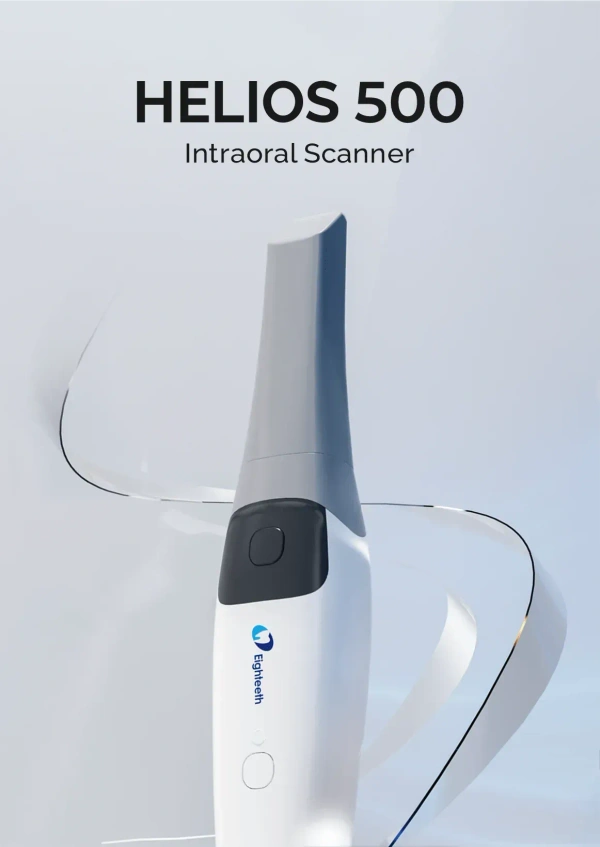

Orikam Eighteeth Medical Helios 500-3D Intraoral Scanner

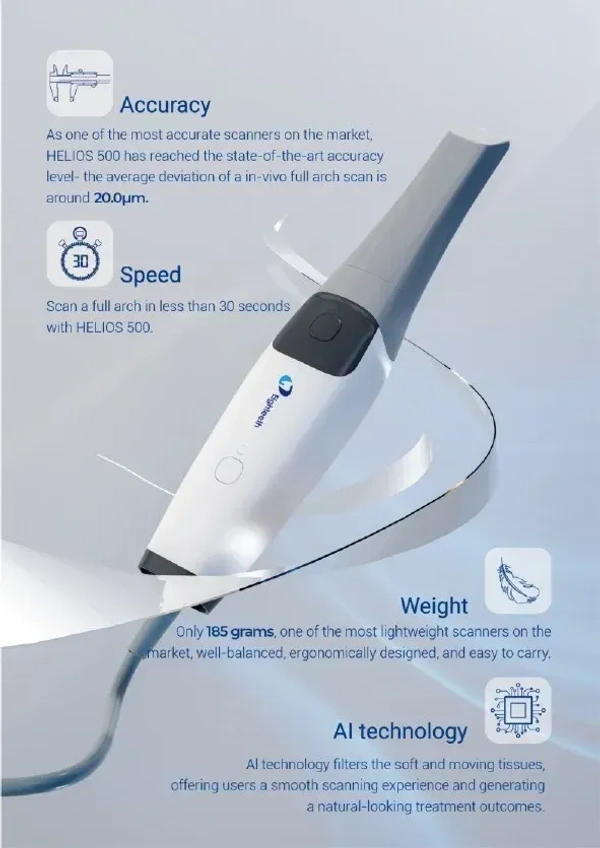

The Eighteeth Helios 500 Intraoral Scanner is a fast, ergonomic digital impression system tailored for modern dental practices. Weighing only ~185 g and able to scan a full arch in under 30 seconds, it delivers high-accuracy imaging (≈20 µm full-arch deviation) and supports open-format exports (STL/PLY/OBJ). Built-in AI optimises soft-tissue filtering and the plug-and-scan workflow removes the need for manual calibration.

Key Features & Specs

• Weight: ~185 g (ultra-light).

• Full-arch scan time: Less than 30 seconds.

• Accuracy: Approx. 20 µm deviation for full-arch scans.

• Tip / Scan field sizes: 16 mm × 14 mm (L) and 12 mm × 12 mm (S) options.

• AI enabled soft-tissue filtering, auto-calibration, open system output.

Recommended System Requirements

• Processor – Intel®CoreTM i7 12th Generation, base frequency 2.4 GHz (or better)
• Memory – 16GB (or more) DDR4, frequency 2666 MHz (or better)
• Hard Drive – 512GB (or more) SSD
• Graphics card – NVIDIA®GeForce®RTX 3050 (or better)
• Display – 15.6″ FHD (1920 x 1080) (or more)
• Others – USB 3.0 port
• Operating system – Windows 11
